STEEL ROLLER SHUTTERS

Heavy duty security

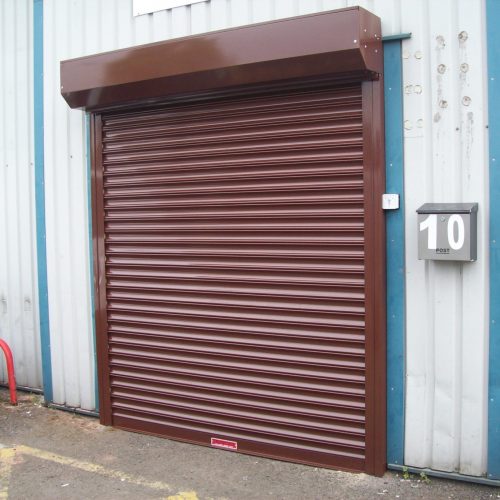

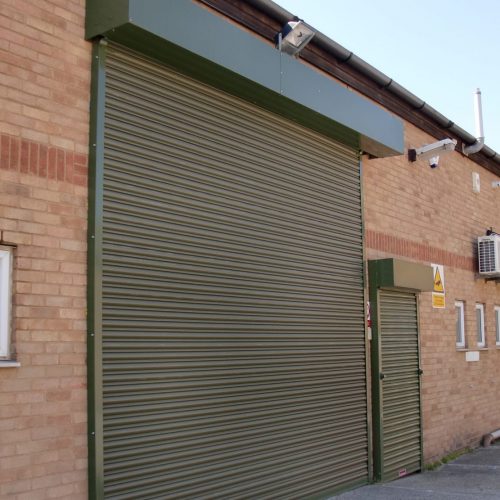

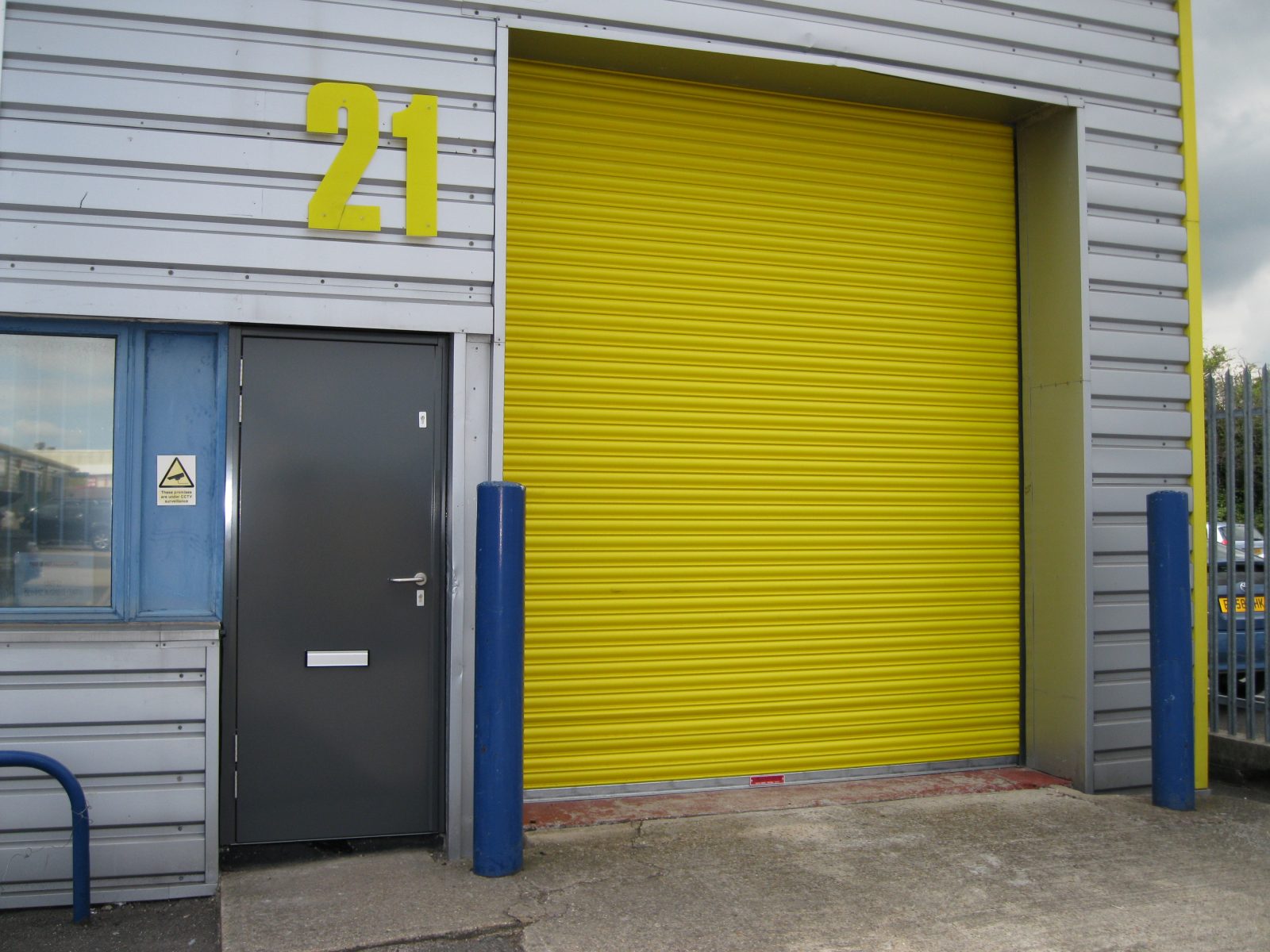

The steel roller shutter is designed for maximum security. The roller shutter curtain coils up within a self contained box above the opening, minimising the space required. Due its steel construction the roller shutter is heavy duty and can span larger openings compared to the aluminium roller shutters. Operation can be manual or electric depending on size, with a vast array of activation and safety equipment available. The steel roller shutters come in a galvanised finish as standard, with the option for powder coating. Various lath options are available to suit your requirements including double skinned insulated laths. The laths can also be punched or perforated to offer vision and ventilation. The steel roller shutters are also available with a certified fire rating upto 4 hours. Its versatile design allows this product to be customisable to suit your requirements. Ideally suited to shopfronts, industrial units, grain stores, and car parks.

  • Steel construction for high security
  • Compact design
  • Both manual or electric operation
  • A range of colours and finishes
  • Many curtain options available including insulated, perforated, and punched

Quick Enquiry

PRODUCT SPECIFICATION

Curtain / Lath

  • 76mm Curved steel lath, in various gauges. Solid, perforated, or punched.
  • 50mm Flat lath. Solid or perforated.
  • 100mm Flat insulated lath, hard polystyrene core
  • 95mm Curved insulated lath, polyurethane core

Finishes

  • Plastisol
  • Polyester powder coating to most BS or RAL colours
  • Galvanised

Headplates
Mild steel headplates in various sizes to suit the roller shutter height and width

Roller Barrel
A mild steel tube with bright drawn mild steel support shaft, in varying diameter dependant upon opening size. Can also house either helical steel springs or a 240 volt ac motor.

Guides
Rolled mild steel channel section, of variety of depths, mounted onto mild steel angles to captivate the shutter curtain on its opening and closing cycle. Doors subject to high wind loading are fitted with ‘windlock’ guide section. Options available:-

  • 50mm ‘U’ channel guide
  • 65mm ‘U’ channel guide
  • 100mm ‘U’ channel guide
  • 65mm Windlock guide
  • 100mm Windlock guide
  • 85mm Windlock guide for insulated lath

Seals
Various seals and brushes available to suit.

Operation
Electric operation via a 3 Phase or Single Phase Drive Motor. Safety sensors, integral timers, push button stations, induction loop activators, remote controls, and impulse operation also available.

Locking
Electric shutters are self locking. Various locks available upon request.

Integral Personnel Door
Optional integral ‘Wicket’ access door available upon request. Installed on either side of the curtain a wicket door provides safe and secure pedestrian access through the roller shutter door when lowered. The whole assembly is independently side hung and swings clear when the roller shutter door requires raising. The door is manufactured from welded section and fitted with shutter laths to match the rest of the curtain. Standard fittings include a ball type catch and night latch lock. On electrically operated doors an interlock switch prevents operation when the wicket door is in position.

Maximum Size
10,000mm Wide x 8000mm High
